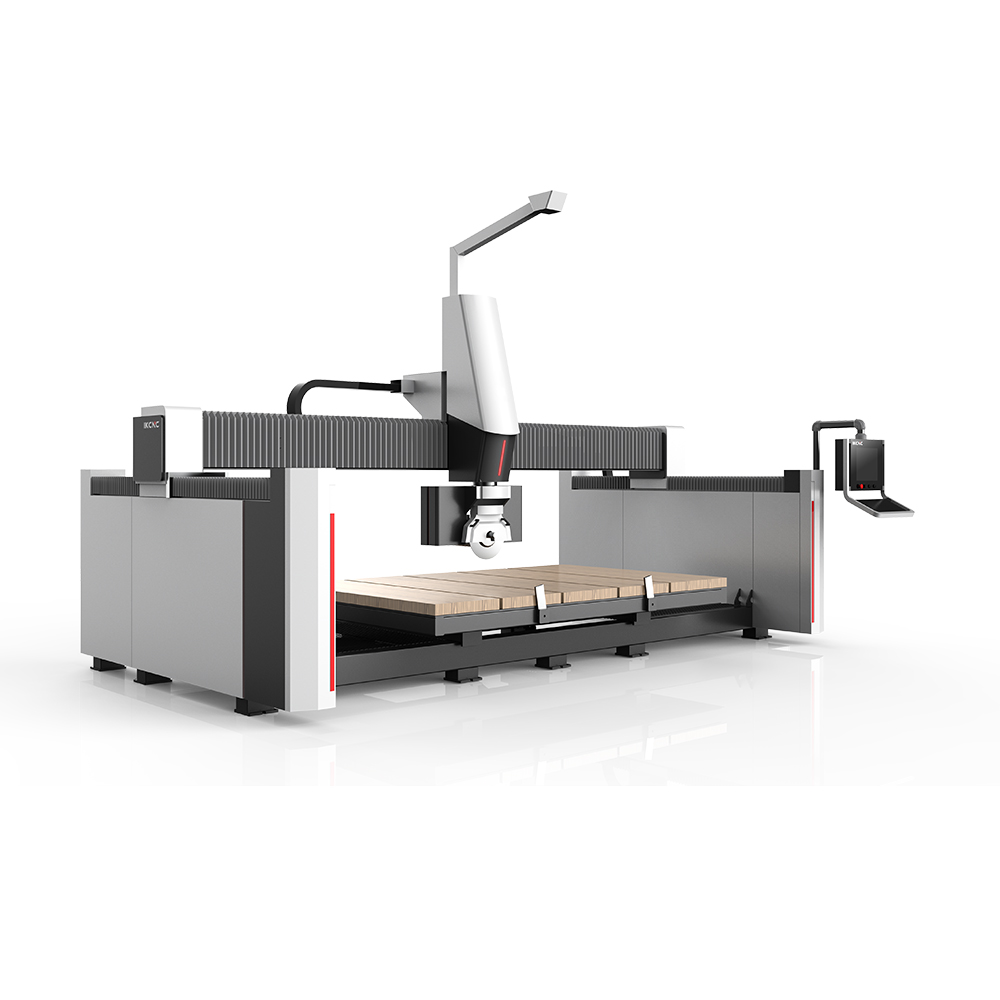

FIVE AXIS INFRARED BRIDGE CUTTING MACHINE
-
0.000.00
-
Infrared five axis bridge cutting machine is suitable for irregular cutting and chamfering of granite, marble, artificial stone, rock plate and other stone materials. It can dig and cut the countertop of kitchen and bathroom in home decoration industry. This machine has reasonable structure, convenient operation, fast cutting speed, small loss of saw blade and smooth cutting surface.
Technical Parameter
X-Axis Stroke | Width 3200mm |
Travel Y-Axis | Length 2000mm |
Blade Diameter | 350mm |
Bed Frame | Seamless welding, aging treatment, five face milling machine processing |
Control system | Upgrade the latest five axis system |
Head rotation angle | 0-360 degrees |
Head tilt angle | Any angle within 0-90 degrees |
Cutting motor | Special cutting motor, waterproof and high temperature resistant |
Transmission mode | High wear resistant widened square rail + imported high precision ball screw |
Driving mode | High precision servo control |
control mode | Five axis professional control system with wireless handle |
Table | Hydraulic, thickened wooden table |
Programming mode | Modify data directly in operating system |
Oiling Method | Automatic oiling and lubrication |
Hold-All | One saw blade, wrench, wearing parts |
Dimensions | L5250mm, W3230mm, H2530mm |
Weight | 3500kg |
