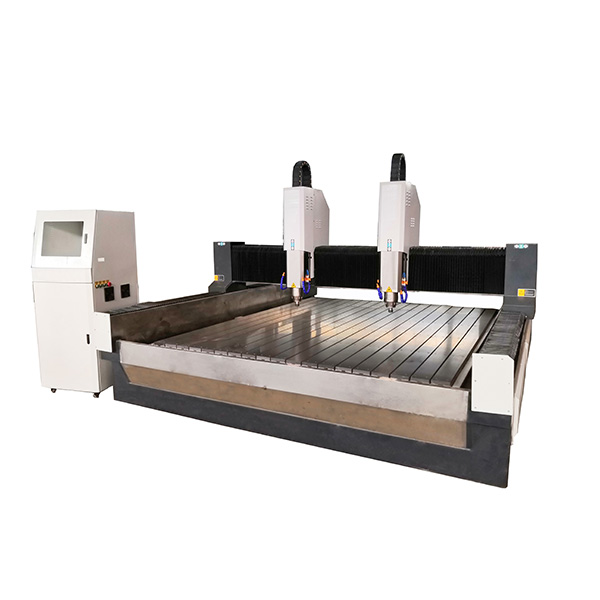

Double-headed stone carving machine
-
0.000.00
-
Advantages :
1. Heavy duty frame, machine weight is about 2200kgs
2.machine frame is processed by high precision cnc milling center, some other supplier use double housing planer，there is precision difference between planer and milling center
3. Our spindle is R&D professional spindle for stone engraving and carving, better dust-proof and water proof. Normal spindle don't have dust-proof and water proof function
4. Other parts all use the one that suitable for stone carving best such as heavy resistance, water-proof, and dust proof.
X Y Z Working Area | 1300mm*2500mm*450mm |
Machine frame | Heavy duty I frame, can bear 5000kgs weight stone |
Repositioning Positioning Accuracy | ±0.05mm |
X,Y ,Z Structure | XY gear wheel, Z ball screw. All Axis use Square Guide |
Working table | T-slot table |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle | 5.5kw water cooled spindle |
Spindle Speed | 0-24000rpm |
Drive Motor | Stepper driving |
Command | G-code*.u00*.mmg*.plt |
Working voltage | 3PH AC380V/50Hz |
Control System | DSP |
Guide rail | 25 SIZE SQUARE RAIL |
Control cabinet | Independent cabinet |
Lubricating system | manual |
Inverter | 5.5kw |
Machine weight | 2200kgs |
