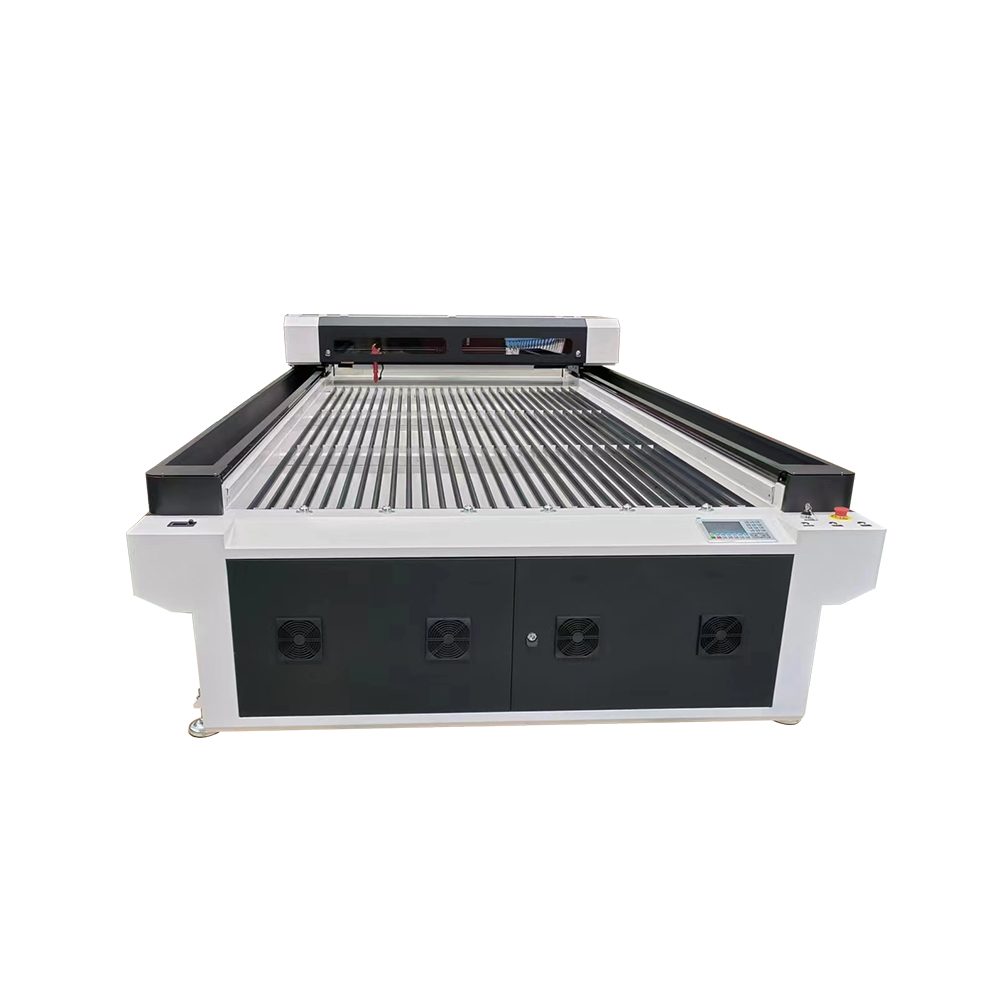

1325-300W/500W CO2 Laser Machine
-
0.000.00
-
FUNCTION INTRODUCTION
Suitable for high-precision high gloss organic material/acrylic product cutting related industries, advertising,
lighting and lighting industry, woodworking industry such as photo frames, building model industry, handicrafts, decoration industry, clothing sampling, leather industry, footwear industry, furniture industry, packaging and
printing industry, craft and gift industry, etc.
Model | 1325-300W/500W |
Laser type | Co2 Enclosed Laser Tube 300W/450WSLW |
Maximum Processing Range At One Time | 1250 *2450mm |
Maximum Feed Width | 1350mm |
Total Weight | 9000KGS/1050KG |
Fastest Movement Speed | 60m/min |
Fastest Working Speed | 40m/min |
Best Cutting Speed Range | 1mm/s-180mm/s |
Speed Control | 0-100% Stepless Control |
Laser Energy Control | RD CCD Software Control/Manual Adjustment |
Laser Tube Cooling | Forced Water Cooling (Industrial Chiller) |
Mechanical Resolution | 0.025mm |
Thickest Cutting Depth | 30mm(Acrylic For Example) |
Repeat Positioning Accuracy | ±0. 1mm |
Power Supply | AC220V±15% 50HZ |
Main Unit Power | ≤3000W |
Support Software Format | BMP PLT DSTAI DXF DWG |
Driving System | Servo Motor, XY Axis Screw |
Working Environment Temperature | 0℃~45℃ |
Water Chiller | CW5300/CW6000 |
Machine Size | 3600 *2100 *1250mm |
