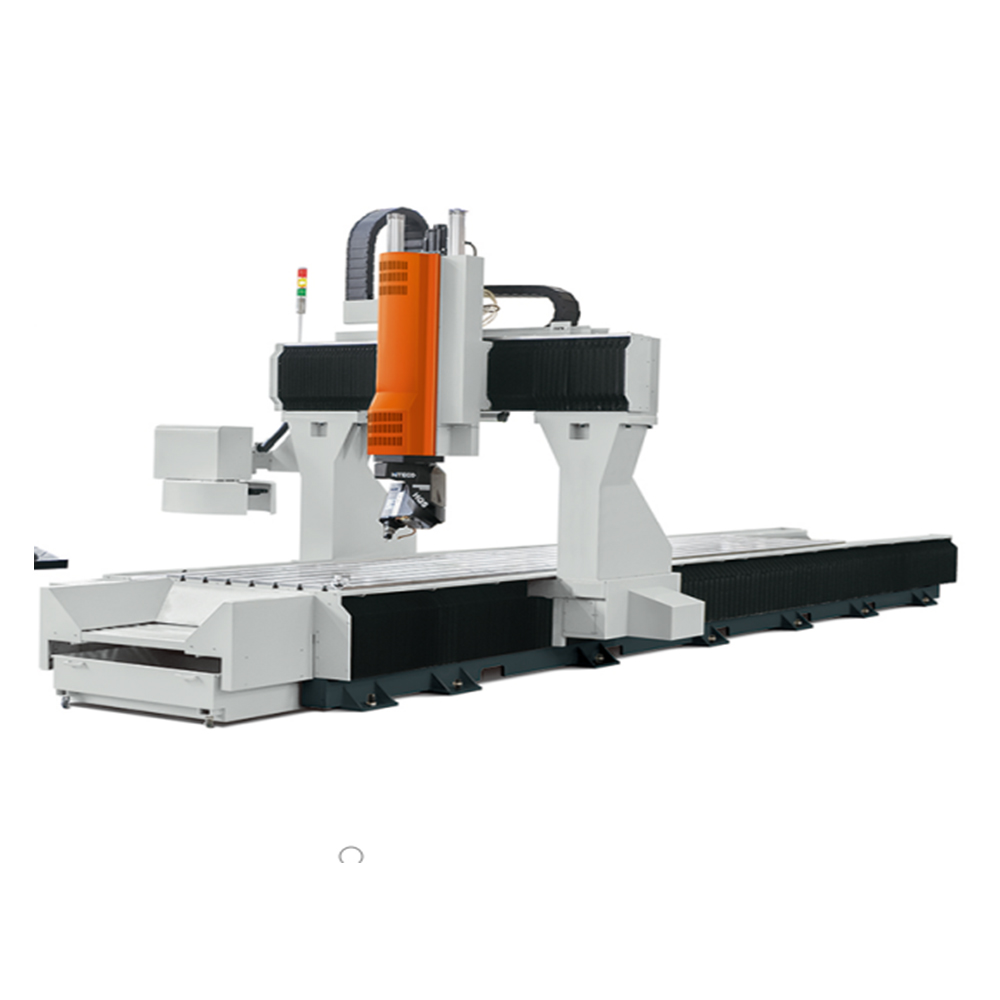

Control system

Taiwan Syntec 610MA 5-axis System (Open RTCP)

Motor

XYZ Taiwan Syntech 1.0KW large inertia servo motor

Spindle

HQD 9kw ATC water cooled spindle,

Italy DEMAS five-axis work head

Rack gear

XY axis Taiwan YYC high precision grinding rack,

Z axis Taiwan T-WIN4040 high precision wire rod

Lead rail

XYZ axis Taiwan T-WIN 30 square rail-flange slider

Frequency transformer

Fuling 11KW vector frequency converter

Mesa

Aluminum alloy T-groove countertops

Tool magazine

8 ATC tools

Maximum X-axis itinerary

1500mm

Maximum travel of Y axis

3000mm

Maximum trip on the Z axis

700mm

Maximum gantry width

2800mm

Maximum gantry height

2200mm

Angle of axis A

-120°⁓120°

C axis rotation Angle

-400°⁓400°

X, Y-axis movement speed

0⁓40000mm/min

Z axis movement speed

0⁓10000mm/min

A, C-axis movement speed

170、270°/sec

X and Y axis feed speed

0⁓20000mm/min

Z-axis feed speed

0⁓5000mm/min

X, Y, and Z axis feed acceleration

3m/s2

Workbench bearing

1000kgs

Maximum speed of spindle

24000r/min

Maximum output power

22kw

Machine packaging size(L*W*H)

4.6x3.8x3.7m

Machine weight

4000kgs
