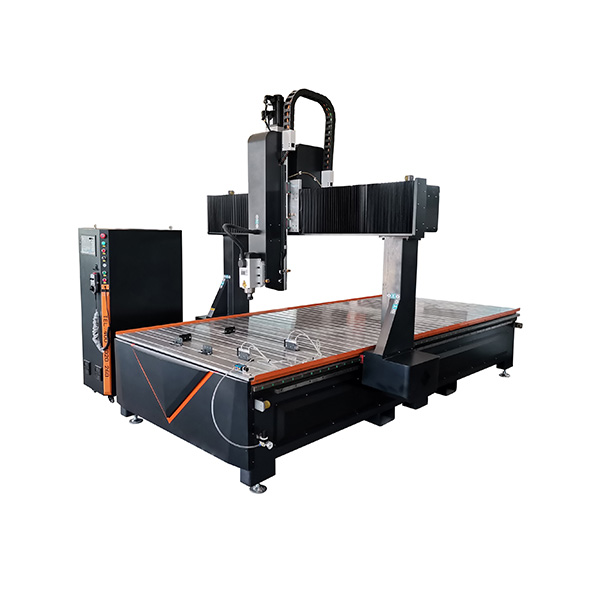

1525BT 4 Axis Styrofoam CNC Router
-
0.000.00
-
1.Feature of styrofoam cnc router
Spindle can wave +/- 90 degree, can do 2d engraving on curved surface
2. Application of foam cnc router Round eps pipe (engrave two same pieces, and paste them into one round pipe). Eps curved surface milling, flat foam sheet engraving and wood engraving milling, perforated-plate/sieve plate in mine industry
Machine frame | Thick welded steel pipe |
Machine table | T-slot table |
Machine size (mm) | 2500*1500*500（L*W*H） |
Working power | AC380V/50HZ |
Spindle power | HQD 6KW air cooling spindle |
Spindle rotating speed | 0-18000r/min |
Tools max size | Φ20mm |
Inverter | 7.5KW |
Transmission | XY helical rack pinion, Z axis high precision Taiwan TBI ball screw |
Control system | Own R&D controller (with handwheel and tool sensor) |
Motor | servo |
Guiding system | 25 size square rail |
Dust collector | 5.5KW double bags dust collector |
